What is the purpose of displaying dashed runway side stripe markings according to GM1 ADR-DSN.L.550?

When turn pads are not available at the end of a runway for back-track manoeuvres and the threshold is displaced, dashed markings may be useful to better identify the full-strength bearing surface.

For a runway width of 45 metres, what are the minimum single dash dimensions for the dashed runway side stripe marking?

For a runway width of 45 metres, the single dash length is 15 metres (minimum) and the width is 0.45 metres.

What is the required dash width for a runway width of 23 metres according to Table GM-L-1?

For a runway width of 23 metres, the dash width is 0.25 metres.

What is the maximum gap length relative to the dash length for dashed runway side stripe markings?

The length of the gap is as much as possible equal, but not longer, to the length of the corresponding marking.

For a runway width of 18 metres, what is the minimum dash length specified in Table GM-L-1?

For a runway width of 18 metres, the minimum dash length is 4 metres.

What is the dash width for a runway width of 60 metres?

For a runway width of 60 metres, the dash width is 0.45 metres.

What is the minimum dash length for a runway width of 30 metres?

For a runway width of 30 metres, the minimum dash length is 10 metres.

GM1 ADR-DSN.L.550 Runway side stripe marking

Navigate / EASA

Ask question Discover more Add to collection

GM1 ADR-DSN.L.550 Runway side stripe marking

ED Decision 2014/013/R

When turn pads are not available at the end of a runway for back-track manoeuvres and threshold is displaced, in order to better identify full-strength bearing surface, it may be useful to display specific dashed markings as showed by Figure GM-L-1 and with dimensions described in Table GM-L-1.

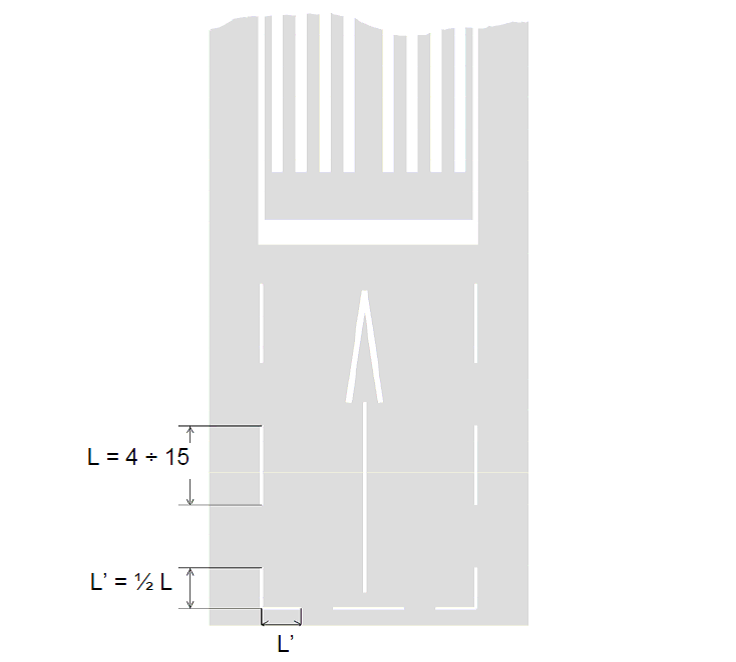

Figure GM-L-1. Dashed runway side stripe marking

Runway width (m)	Single dash dimensions
Runway width (m)	Length (minimum m)	Width (m)
60	15	0.45
45	15	0.45
30	10	0.45
23	6	0.25
18	4	0.25
Note: The length of the gap is as much as possible equal, but not longer, to the length of the corresponding marking

Table GM-L-1. Dashed runway side stripe markings

Details

Source-Title: GM1 ADR-DSN.L.550 Runway side stripe marking View latest amendments

Erulesid: ERULES-1963177438-2458 Compare versions

Domain: Aerodromes

Activitytype: Aerodrome operations, Aerodrome design, Manufacturing

Amendedby: CS Issue 1

Applicabilitydate: 7 March, 2014

Entryintoforcedate: 6 March, 2014

Icaoreference: Annex 14, Volume I

Regulatedentity: Aerodrome operator, Aerodrome design organisation, Aerodrome equipment manufacturer

Regulatorysource: ED Decision 2014/013/R Navigate

Regulatorysubject: CS-ADR-DSN

Technicalsubjectmatter: Markings

Typeofcontent: GM to CS (Guidance material to certification specification)

Parentir: CS ADR-DSN.L.550 Runway side stripe marking

Easacategory: Non-instrument runway, Non-precision approach runway, Precision approach runway Category I, Precision approach runway Category II, Precision approach runway Category III, Take-off runway
