GM1 ADR-DSN.L.550 Runway side stripe marking
Available versions for ERULES-1963177438-2458
ED Decision 2014/013/R
found in: Aerodromes (139/2014) Part-ADR.AR Part-ADR.OR Part-ADR.OPS CS-ADR-DSN CS-HPT-DSN (Jun 2023)
From
Easy Access Rules ... (Mar 2026)
Aerodromes (139/20... (Dec 2024)
Aerodromes (139/20... (Jun 2023)
From section
To
Easy Access Rules ... (Mar 2026)
Aerodromes (139/20... (Dec 2024)
Aerodromes (139/20... (Jun 2023)
To section
No visible text changes
0 removals
0 additions
View
Rich
Plain
Sync scrolling
Share
From
Show details
Hide details
To
Show details
Hide details
Version
Show side by side

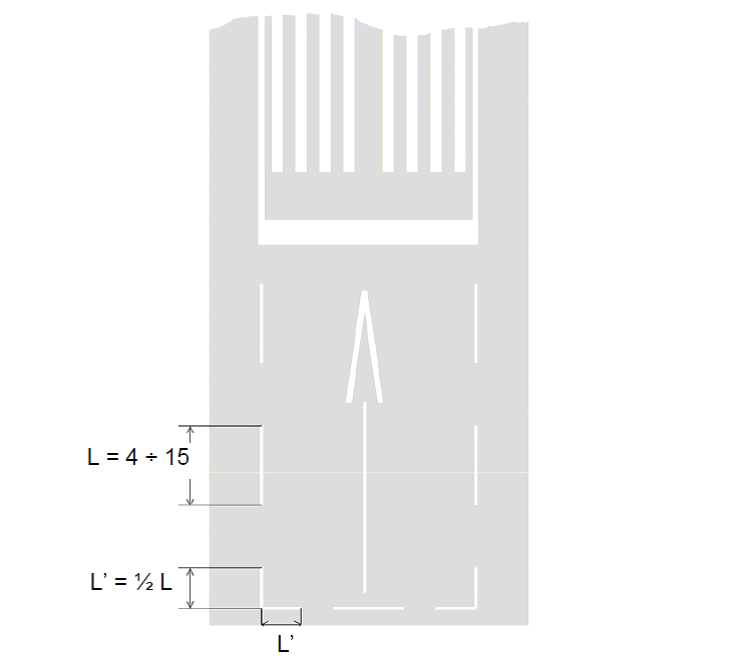

GM1 ADR-DSN.L.550 Runway side stripe marking ED Decision 2014/013/R When turn pads are not available at the end of a runway for back-track manoeuvres and threshold is displaced, in order to better identify full-strength bearing surface, it may be useful to display specific dashed markings as showed by Figure GM-L-1 and with dimensions described in Table GM-L-1.  Figure GM-L-1. Dashed runway side stripe marking <table border="1" cellpadding="0" cellspacing="0" width="604"><thead><tr><td rowspan="2" width="202"><p align="center"><b>Runway width (m)</b></p></td><td colspan="2" width="402"><p align="center"><b>Single dash dimensions</b></p></td></tr><tr><td width="201"><p align="center"><b>Length (minimum m)</b></p></td><td width="201"><p align="center"><b>Width (m)</b></p></td></tr></thead><tr><td valign="top" width="202"><p align="center">60</p></td><td valign="top" width="201"><p align="center">15</p></td><td valign="top" width="201"><p align="center">0.45</p></td></tr><tr><td valign="top" width="202"><p align="center">45</p></td><td valign="top" width="201"><p align="center">15</p></td><td valign="top" width="201"><p align="center">0.45</p></td></tr><tr><td valign="top" width="202"><p align="center">30</p></td><td valign="top" width="201"><p align="center">10</p></td><td valign="top" width="201"><p align="center">0.45</p></td></tr><tr><td valign="top" width="202"><p align="center">23</p></td><td valign="top" width="201"><p align="center">6</p></td><td valign="top" width="201"><p align="center">0.25</p></td></tr><tr><td valign="top" width="202"><p align="center">18</p></td><td valign="top" width="201"><p align="center">4</p></td><td valign="top" width="201"><p align="center">0.25</p></td></tr><tr><td colspan="3" valign="top" width="604"><p>Note: The length of the gap is as much as possible equal, but not longer, to the length of the corresponding marking</p></td></tr></table> Table GM-L-1. Dashed runway side stripe markings
