CS ADR-DSN.L.610 Information marking

ED Decision 2022/006/R

(a) Applicability: Where an information sign in accordance with CS ADR-DSN.N.785 is not installed, an information marking should be displayed on the surface of the pavement.

(b) Characteristics:

(1) An information marking should consist of:

(i) an inscription in yellow upon a black background when it replaces or supplements a location sign; and

(ii) an inscription in black upon a yellow background when it replaces or supplements a direction or destination sign.

(2) Where there is insufficient contrast between the marking background and the pavement surface, the marking should include:

(i) a black border where the inscriptions are in black; and

(ii) a yellow border where the inscriptions are in yellow.

(3) The character height, spacing, and the form and proportions of the inscription should be as for mandatory instruction markings.

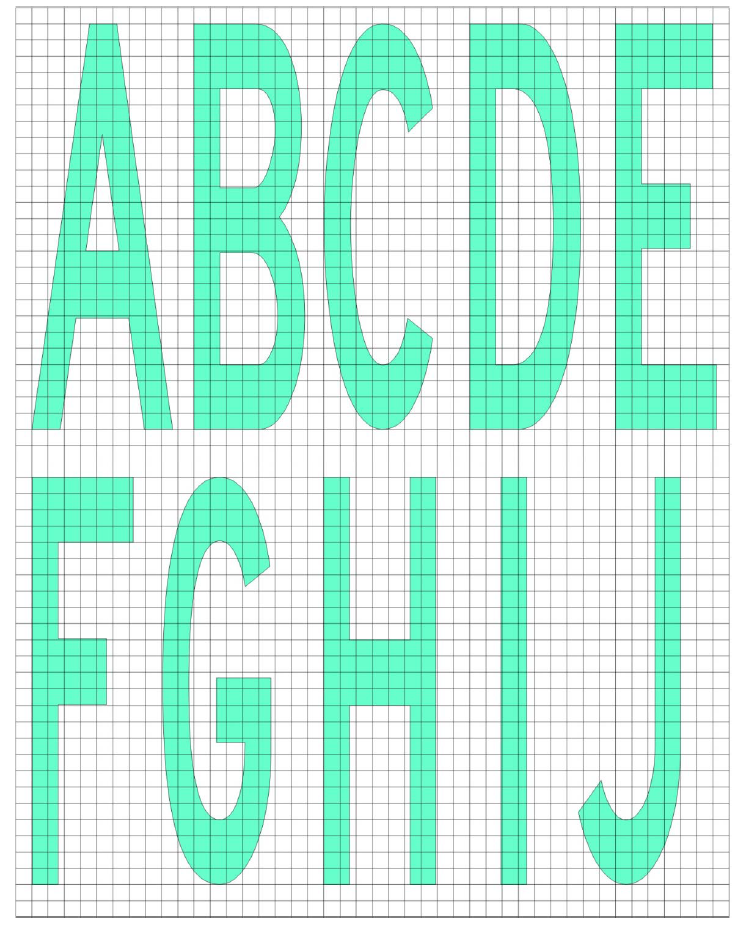

Figure L-10A. Mandatory instruction marking inscription form and proportions

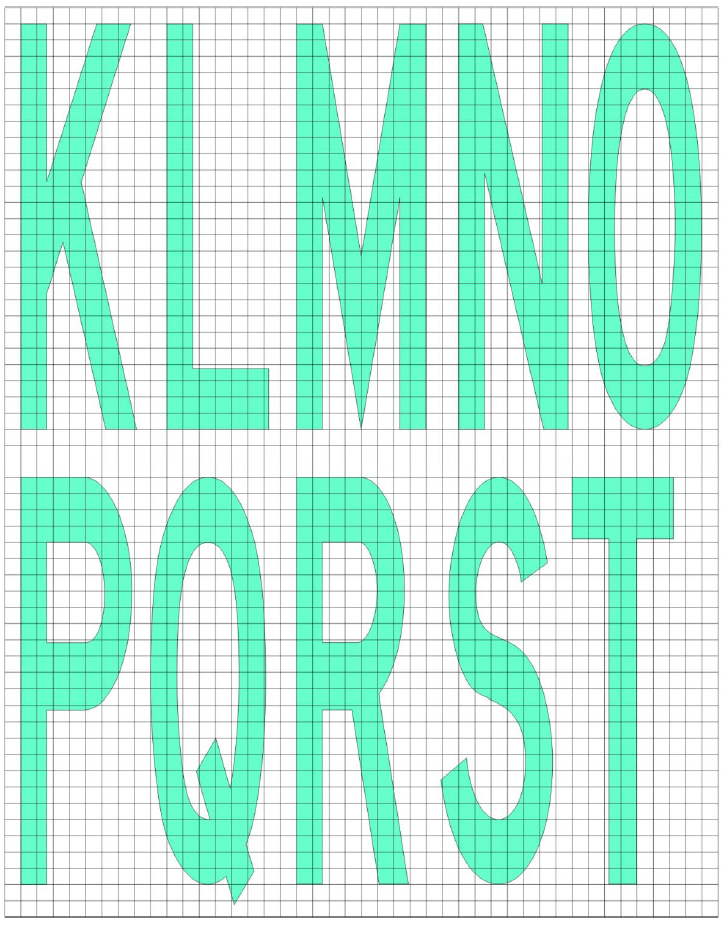

Figure L-10B. Mandatory instruction marking inscription form and proportions

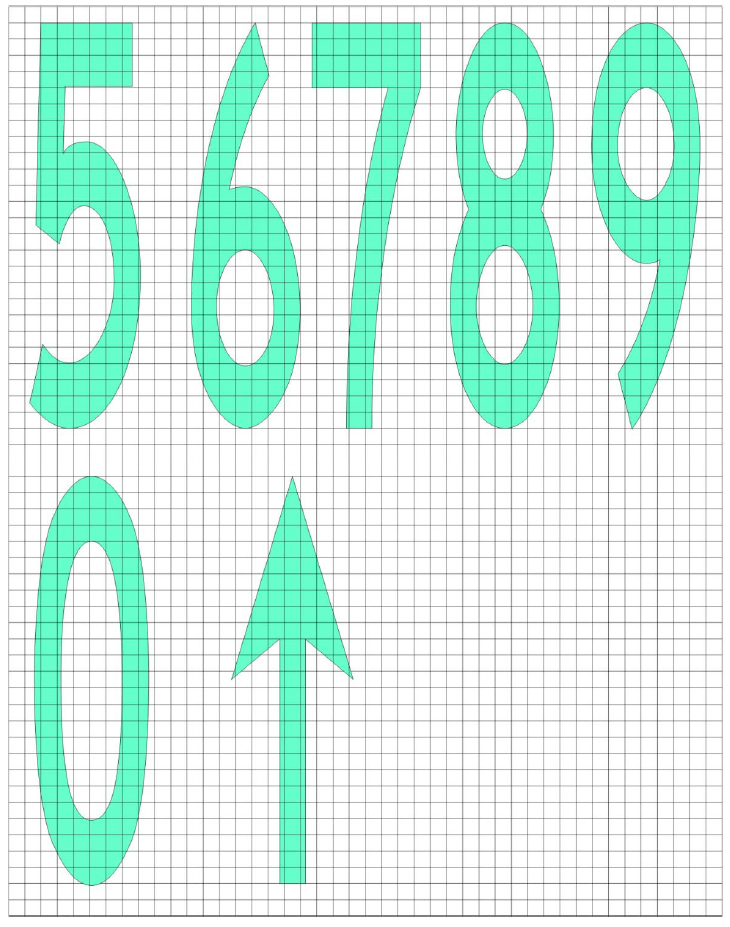

Figure L-10C. Mandatory instruction marking inscription form and proportions

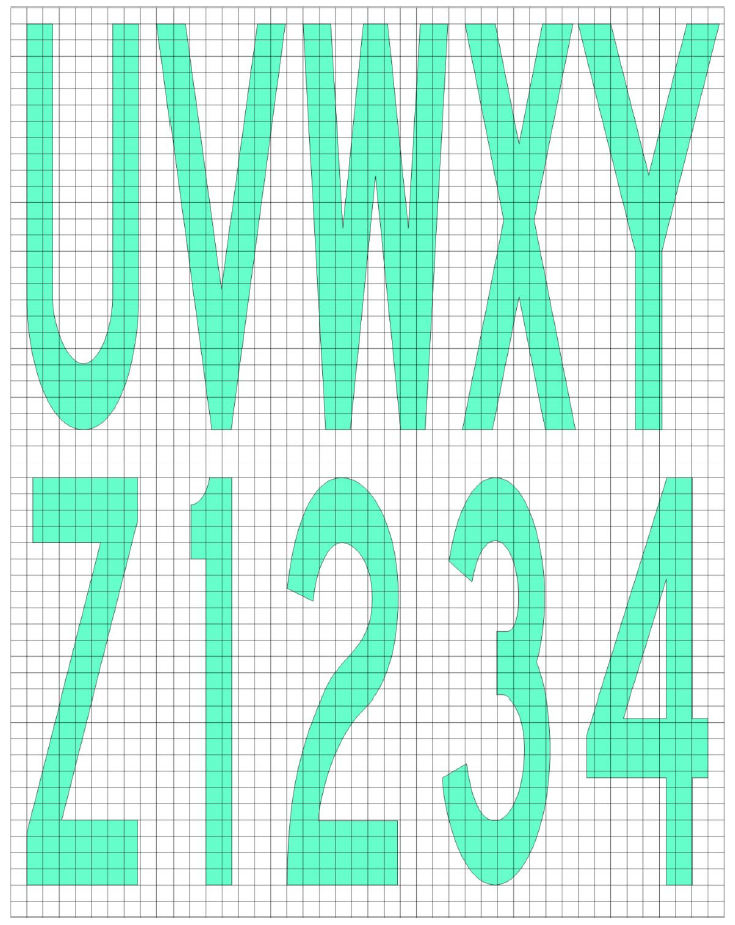

Figure L-10D. Mandatory instruction marking inscription form and proportions

[Issue: ADR-DSN/3]

[Issue: ADR-DSN/4]

[Issue: ADR-DSN/6]
