CS ADR-DSN.M.696 Simple touchdown zone lights

• ED Decision 2017/021/R found in: Aerodromes (139/2014) Part-ADR.AR Part-ADR.OR Part-ADR.OPS CS-ADR-DSN CS-HPT-DSN (Dec 2024)

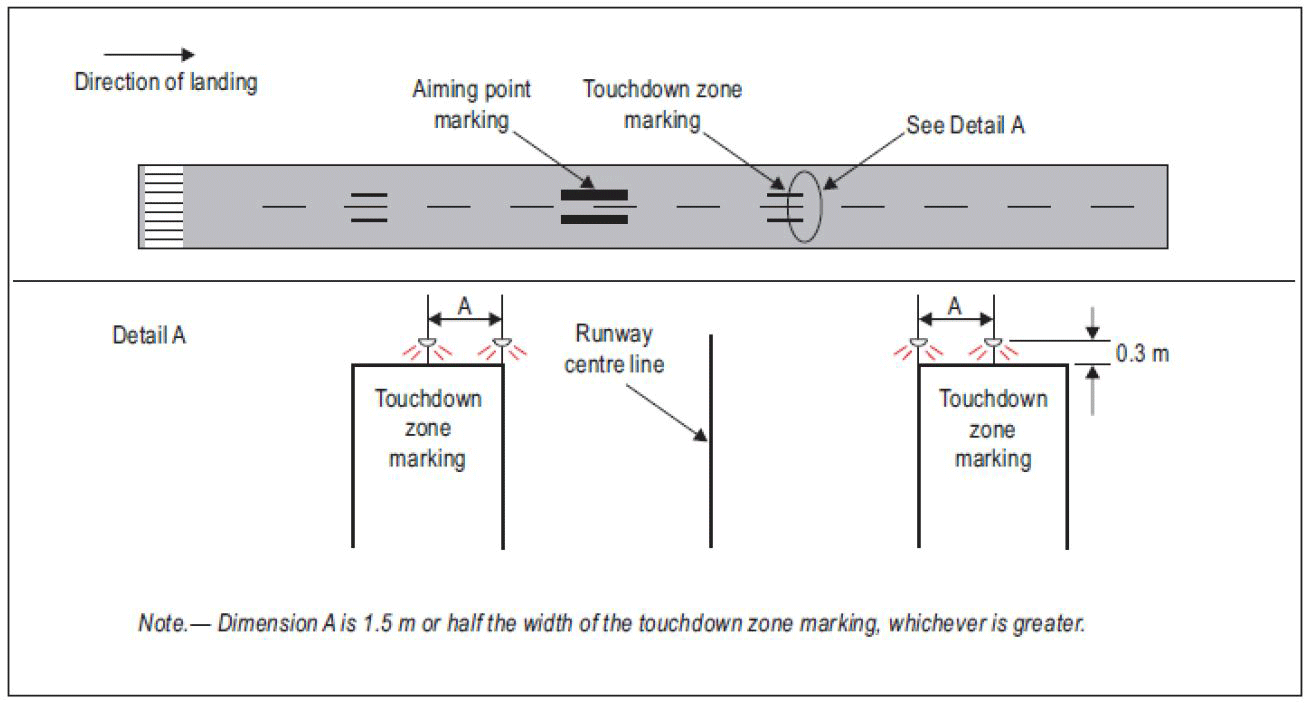

CS ADR-DSN.M.696 Simple touchdown zone lights ED Decision 2017/021/R (a) The purpose of simple touchdown zone lights is to provide pilots with enhanced situational awareness in all visibility conditions and to help enable pilots to decide whether to commence a go around if the aircraft has not landed by a certain point on the runway. (b) Applicability: Except where touchdown zone lights are provided in accordance with [CS ADR-DSN.M.695](#_DxCrossRefBm151830890), at a runway where the approach angle is greater than 3.5 degrees and/or the Landing Distance Available combined with other factors increases the risk of an overrun, simple touchdown zone lights should be provided. (c) Location and positioning: (1) Simple touchdown zone lights should be a pair of lights located on each side of the runway centre line 0.3 metres beyond the upwind edge of the final touchdown zone marking. (2) The lateral spacing between the inner lights of the two pairs of lights should be equal to the lateral spacing selected for the touchdown zone marking. (3) The spacing between the lights of the same pair should not be more than 1.5 m or half the width of the touchdown zone marking, whichever is greater (see Figure M-8(C)). (4) Where provided on a runway without touchdown zone markings, simple touchdown zone lights should be installed in such a position that provides the equivalent touchdown zone information. (d) Characteristics: (1) Simple touchdown zone lights should be fixed unidirectional lights showing variable white and aligned so as to be visible to the pilot of a landing aeroplane in the direction of approach to the runway. (2) Simple touchdown zone lights characteristics should be in accordance with the specifications in [CS ADR-DSN.U.940](#_DxCrossRefBm151830505), Figure U-9. (3) Simple touchdown zone lights chromaticity should be in accordance with the specifications in [CS ADR-DSN.U.930](#_DxCrossRefBm151830859) and Figure U-1A or U-1B, as appropriate.  Figure M-8(C). Simple touchdown zone lighting [Issue: ADR-DSN/3] [Issue: ADR-DSN/4] CS ADR-DSN.M.696 Simple touchdown zone lights ED Decision 2017/021/R (a) The purpose of simple touchdown zone lights is to provide pilots with enhanced situational awareness in all visibility conditions and to help enable pilots to decide whether to commence a go around if the aircraft has not landed by a certain point on the runway. (b) Applicability: Except where touchdown zone lights are provided in accordance with [CS ADR-DSN.M.695](#_DxCrossRefBm1800047752), at a runway where the approach angle is greater than 3.5 degrees and/or the Landing Distance Available combined with other factors increases the risk of an overrun, simple touchdown zone lights should be provided. (c) Location and positioning: (1) Simple touchdown zone lights should be a pair of lights located on each side of the runway centre line 0.3 metres beyond the upwind edge of the final touchdown zone marking. (2) The lateral spacing between the inner lights of the two pairs of lights should be equal to the lateral spacing selected for the touchdown zone marking. (3) The spacing between the lights of the same pair should not be more than 1.5 m or half the width of the touchdown zone marking, whichever is greater (see Figure M-8(C)). (4) Where provided on a runway without touchdown zone markings, simple touchdown zone lights should be installed in such a position that provides the equivalent touchdown zone information. (d) Characteristics: (1) Simple touchdown zone lights should be fixed unidirectional lights showing variable white and aligned so as to be visible to the pilot of a landing aeroplane in the direction of approach to the runway. (2) Simple touchdown zone lights characteristics should be in accordance with the specifications in [CS ADR-DSN.U.940](#_DxCrossRefBm1800047367), Figure U-9. (3) Simple touchdown zone lights chromaticity should be in accordance with the specifications in [CS ADR-DSN.U.930](#_DxCrossRefBm1800047721) and Figure U-1A or U-1B, as appropriate.  Figure M-8(C). Simple touchdown zone lighting [Issue: ADR-DSN/3] [Issue: ADR-DSN/4] #### CS ADR-DSN.M.696 Simple touchdown zone lights *ED Decision 2017/021/R* (a) The purpose of simple touchdown zone lights is to provide pilots with enhanced situational awareness in all visibility conditions and to help enable pilots to decide whether to commence a go around if the aircraft has not landed by a certain point on the runway. (b) Applicability: Except where touchdown zone lights are provided in accordance with [CS ADR-DSN.M.695](#_DxCrossRefBm1262885329), at a runway where the approach angle is greater than 3.5 degrees and/or the Landing Distance Available combined with other factors increases the risk of an overrun, simple touchdown zone lights should be provided. (c) Location and positioning: (1) Simple touchdown zone lights should be a pair of lights located on each side of the runway centre line 0.3 metres beyond the upwind edge of the final touchdown zone marking. (2) The lateral spacing between the inner lights of the two pairs of lights should be equal to the lateral spacing selected for the touchdown zone marking. (3) The spacing between the lights of the same pair should not be more than 1.5 m or half the width of the touchdown zone marking, whichever is greater (see Figure M-8(C)). (4) Where provided on a runway without touchdown zone markings, simple touchdown zone lights should be installed in such a position that provides the equivalent touchdown zone information. (d) Characteristics: (1) Simple touchdown zone lights should be fixed unidirectional lights showing variable white and aligned so as to be visible to the pilot of a landing aeroplane in the direction of approach to the runway. (2) Simple touchdown zone lights characteristics should be in accordance with the specifications in [CS ADR-DSN.U.940](#_DxCrossRefBm1262884944), Figure U-9. (3) Simple touchdown zone lights chromaticity should be in accordance with the specifications in [CS ADR-DSN.U.930](#_DxCrossRefBm1262885298) and Figure U-1A or U-1B, as appropriate.  ***Figure M-8(C). Simple touchdown zone lighting*** [Issue: ADR-DSN/3] [Issue: ADR-DSN/4]
