GM1 ADR-DSN.B.095 Runway turn pads

ED Decision 2022/006/R

Where severe weather conditions and resultant lowering of surface friction characteristics prevail, a larger wheel-to-edge clearance should be provided.

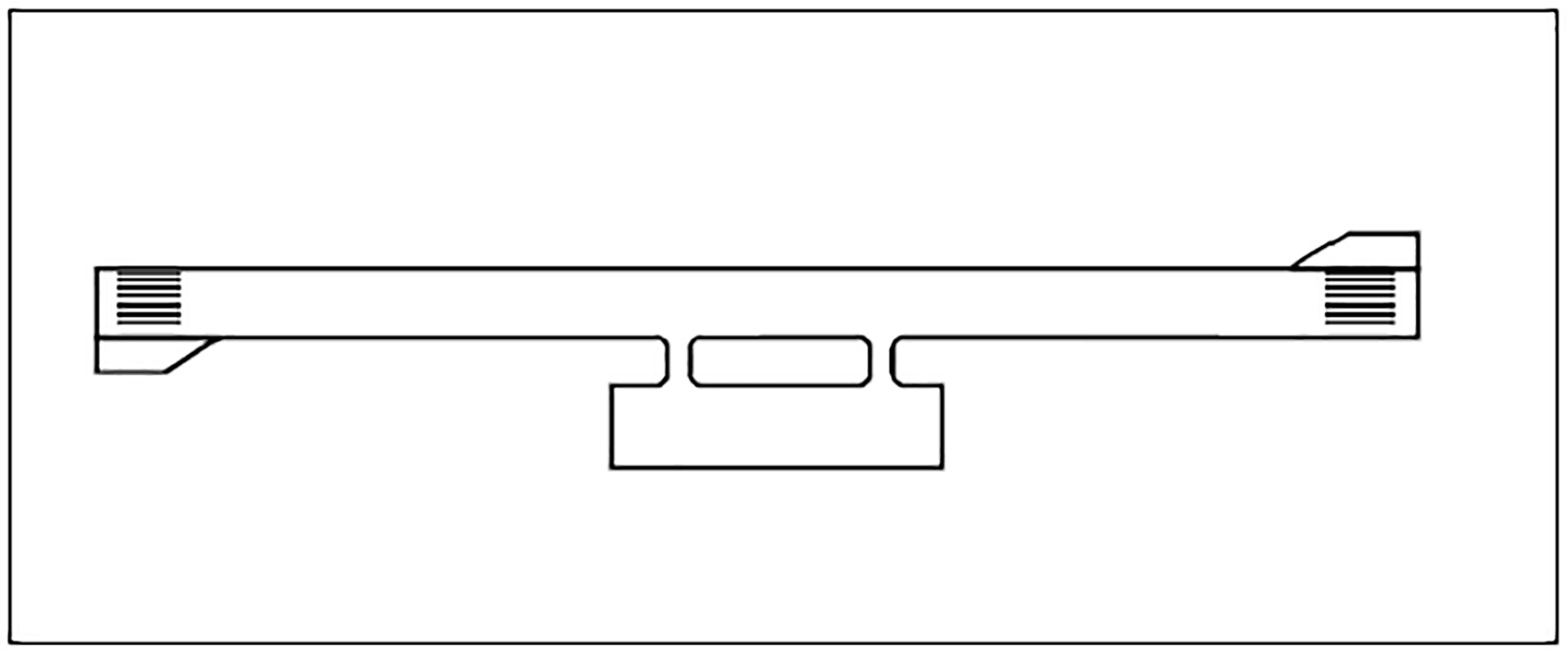

(a) A typical runway turn pad layout is presented in Figure GM-B-3 below:

Picture Alt. Text

Figure GM-B-3. Typical turn pad layout

(b) Such areas, if provided along a runway, may also be useful to reduce taxiing time and distance for aeroplanes which may not require the full length of the runway.

(c) Additional guidance on the design of runway turn pads is given in ICAO Doc 9157, Aerodrome Design Manual, Part 1, Runways.

[Issue: ADR-DSN/3]

[Issue: ADR-DSN/4]

[Issue: ADR-DSN/6]
