AMC2 MET.TR.265Â Volcanic ash advisory
centre responsibilities
ED Decision 2022/004/R
VOLCANIC ASH ADVISORY INFORMATION — GRAPHICAL FORMAT
The volcanic ash advisory information listed in Appendix 6 to Annex V (Part-MET) to Regulation (EU) 2017/373, when prepared in graphical format, should be as specified below and issued using the portable network graphics (PNG) format as specified in point (f) of AMC1 MET.TR.115(a):

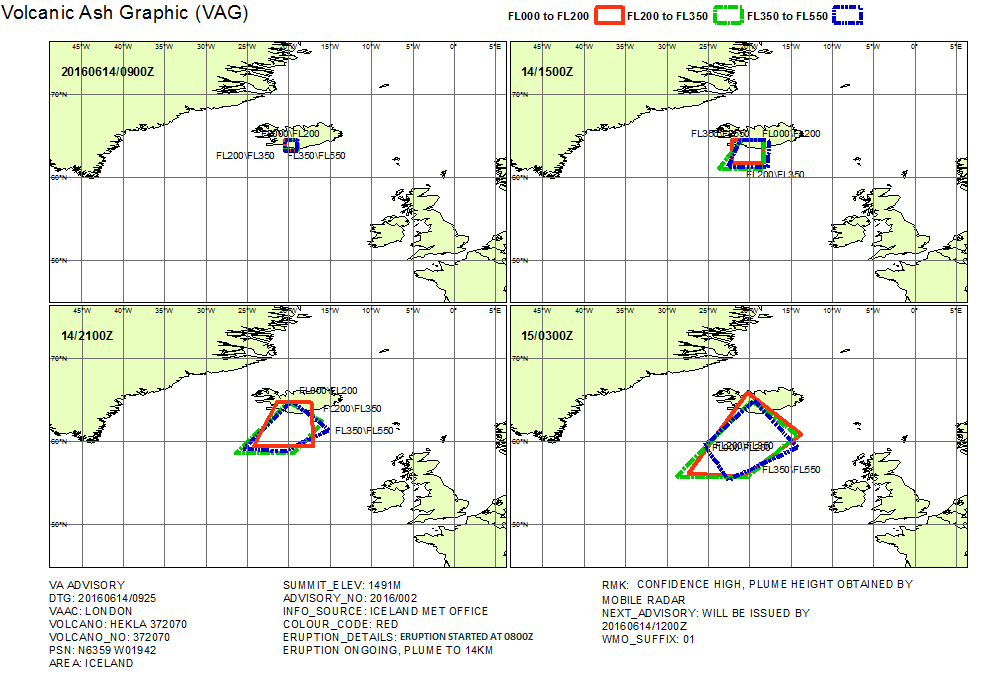

Example of volcanic ash advisory in graphical format from the London VAAC. Mercator projection.
Note: The example above
is fictitious.

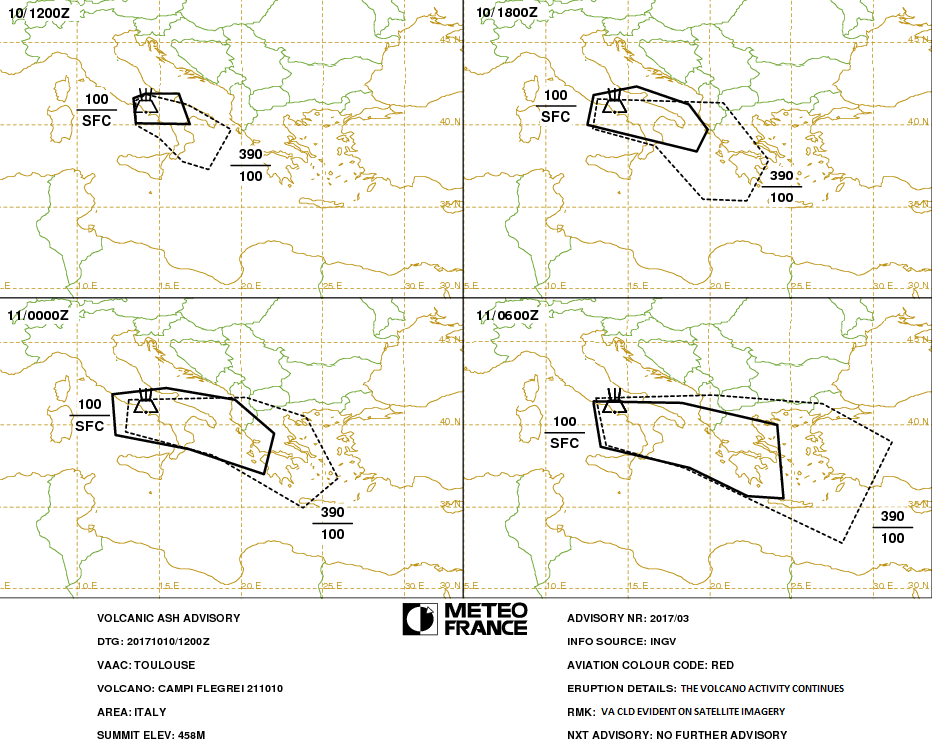

Example of volcanic ash advisory in graphical format from the Toulouse VAAC. Mercator projection.
Note: The example above
is fictitious.

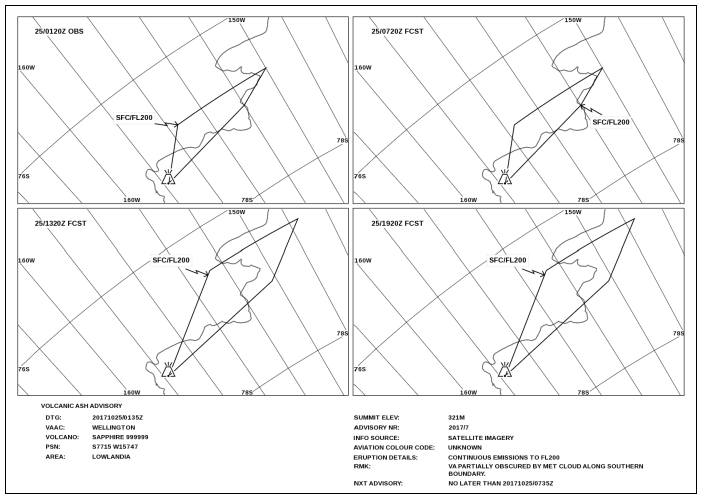

Example of volcanic ash advisory in graphical format from the Wellington VAAC. Polar stereographic projection.
Note: The example above
is fictitious.
