GM1 SPA.HOFO.115 Use of offshore locations
ED Decision 2016/022/R

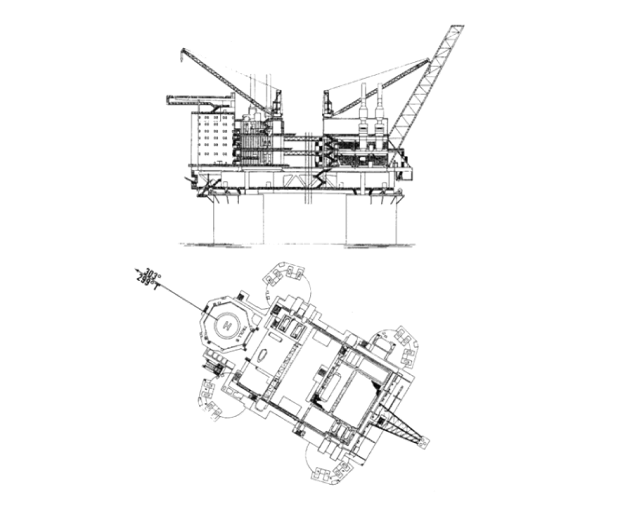

Figure 1 —
Example of a helicopter landing area template
|
Operator |
10-1 |
Revision date |
|||
|
Installation/vessel name |
Position |
(N/S XXX) |
(E/W XXX) |
||
|
Deck height |
Installation height |
Highest obstacle within 5 nm |
Deck heading |
Deck ident |
|
|
(XXX ft) |
(XXX ft) |
|
|
|
|
|
AIMS/ICAO code |
Radio |
Radio |
Deck category |
Side ident |
|
|
|
|
|
(1/2/3) |
|
|
|
Deck size (m) |
T value (XXX kg) |
Cleared for (above D or t values) |
Installation type |
Operator |
|
|
|
|
(Helicopter type xxx) |
(Fixed/semi/etc.) |
|
|
|
Fuel |
Ground power |
Inspection date |
Inspected by |
Next due |
|
|
(Press/gravity/no) |
(AC/DC/no) |
|
|
|
|
|
|
|||||
|
Wind direction |
Wind speed |
Limitations |
|||
|
(All) (000–050) |
(All) (> 30) |
(Performance requirements) (Table 2 etc.) |
|||
|
5:1 non-compliant obstacles |
|
||||
|
Additional information |
|
||||
Figure 2
— Example of a helicopter landing area template
